Introduction

                In the context of a communication network, the term topology refers to that way in which the end points, or stations, attached to the network are interconnected or it is the arrangements of systems in a computer network. It can be either physical or logical. The physical topology refers that, a way in which a network is laid out physically and it will include the devices, installation and location. Logical topology refers that how a data transfers in a network as opposed to its design.



The physical and logical network topologies of a network do not necessarily have to be identical. However, both physical and network topologies can be categorized into five basic models:

BUS TOPOLOGY

• Bus Topology: All the devices/nodes are connected sequentially to the same backbone or transmission line. This is a simple, low-cost topology, but its single point of failure presents a risk.

STAR TOPOLOGY

• Star Topology: All the nodes in the network are connected to a central device like a hub or switch via cables. Failure of individual nodes or cables does not necessarily create downtime in the network but the failure of a central device can. This topology is the most preferred and popular model.

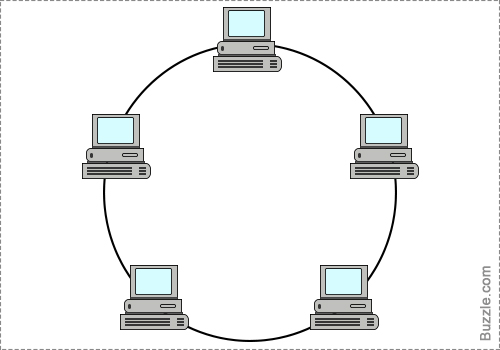

RING TOPOLOGY



• Ring Topology:  All network devices are connected sequentially to a backbone as in bus topology except that the backbone ends at the starting node, forming a ring. Ring topology shares many of bus topology's disadvantages.

TREE TOPOLOGY

• Tree Topology: A root node is connected to two or more sub-level nodes, which themselves are connected hierarchically to sub-level nodes. Physically, the tree topology is similar to bus and star topologies; the network backbone may have a bus topology, while the low-level nodes connect using star topology.

MESH TOPOLOGY



• Mesh Topology: The topology in each node is directly connected to some or all the other nodes present in the network. This redundancy makes the network highly fault tolerant but the escalated costs may limit this topology to highly critical networks.
